spring boot 集成 dubbo

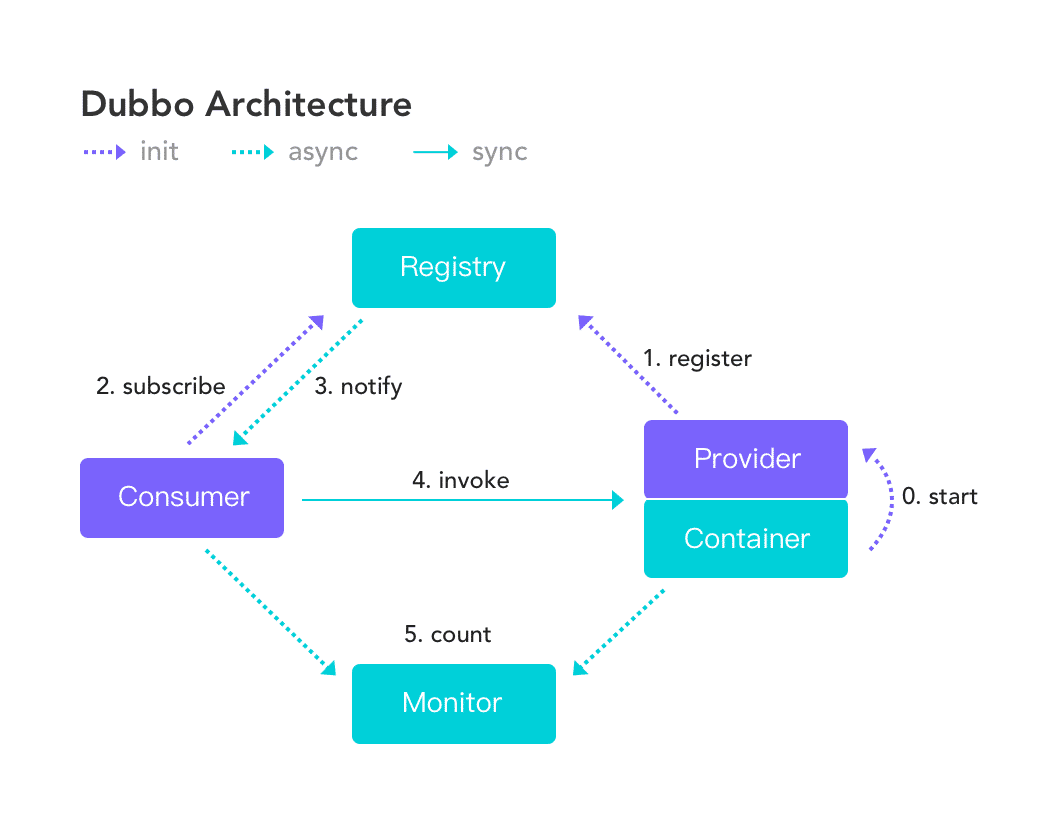

0. dubbo架构

1. 将dubbo-spring-boot-starter安装到本地仓库

下载dubbo-spring-boot-starter (opens new window)依赖包

编译安装到本地仓库

mvn install -Dmaven.skip.test=true

2. 搭建Zookeeper

下载 zookeeper,解压,拷贝 zoo_example.cfg 到 zoo.cfg

版本>3.5 注意 adminport

3. RPC服务接口

public interface IUserService {
    public String sayHello(String name);
}

4. 依赖

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.1.RELEASE</version>
</parent>

<dependencies>
    <!--dubbo-->
    <dependency>
        <groupId>com.alibaba.spring.boot</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
        <version>2.0.0</version>
    </dependency>
	<!--spring-boot-stater-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
        <exclusions>
            <exclusion>
                <artifactId>log4j-to-slf4j</artifactId>
                <groupId>org.apache.logging.log4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>
	<!--zookeeper-->
    <dependency>
        <groupId>org.apache.zookeeper</groupId>
        <artifactId>zookeeper</artifactId>
        <version>3.4.10</version>
        <exclusions>
            <exclusion>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
            </exclusion>
            <exclusion>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

    <dependency>
        <groupId>com.101tec</groupId>
        <artifactId>zkclient</artifactId>
        <version>0.9</version>
        <exclusions>
            <exclusion>
                <artifactId>slf4j-log4j12</artifactId>
                <groupId>org.slf4j</groupId>
            </exclusion>
        </exclusions>
    </dependency>
	<!--API-->
    <dependency>
        <groupId>com.fengye.spring.boot.dubbo</groupId>
        <artifactId>spring-boot-dubbo-api</artifactId>
        <version>1.0.0</version>
    </dependency>

</dependencies>

5. 配置文件

spring.application.name=dubbo-demo-provider
spring.dubbo.application.id=dubbo-demo-provider
spring.dubbo.application.name=dubbo-demo-provider
#多个zookeeper注册中心使用分号(;)分隔,形如: zookeeper://192.168.25.140:2181;zookeeper://192.168.25.140:2182;zookeeper://192.168.25.140:2183
spring.dubbo.registry.address=zookeeper://192.168.1.200:2181
spring.dubbo.server=true
spring.dubbo.protocol.name=dubbo
spring.dubbo.protocol.port=20880

6. 服务提供者

服务实现:

@Component
@Service(interfaceClass = IUserService.class)
public class UserServiceImpl implements IUserService{
    @Override
    public String sayHello(String name) {
        return "hello:"+name;
    }
}

注: @Service为dubbo提供的注解,不要写成spring boot中的@Service

7. 服务消费者

@RestController
@RequestMapping("/user")
public class UserController {

    @Reference
    private IUserService userService;

    @RequestMapping("/sayHello")
    public String sayHello(String name){
        return userService.sayHello(name);
    }

}

注: @Reference为dubbo提供的注解

8. 启动类

@EnableDubboConfiguration
@SpringBootApplication
public class ProviderBootstrap {

    public static void main(String[] args) throws IOException {
        SpringApplication.run(ProviderBootstrap.class,args);
    }

}

注: @EnableDubboConfiguration 必须要使用该注解
